Description
Digital flow meters for liquids

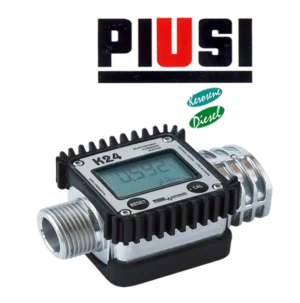

Introducing the K24 digital flow meters for low-viscosity fluids. Easy to install in line or at the end of a delivery pipe, equipped with a screen that can be adjusted to various positions for easy reading. digital flow meters for liquids are the ideal instrument for controlling fluid dispensing. Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions.
Aluminum (K24) or reinforced polyamide (plastic version) body. Polypropylene turbine.
Impulse-type signals: single channel, reed switch. Electronic card with LCD display: 5-digit
partial from 0.1 to 99999, 6-digit total from 1 to 999999
Reset able total available. Flow rate indication. Repeat-ability 0.2 %. Loss of pressure < 0.03 bar at 120 l/min.
Can be calibrated. Powered by two AAA batteries
For a complete catalog click the link below
Technical features:
-Flow rates 20 – 120 l/min
-Accuracy +/- 1%
– Repeatability 0.2 %
– Max. operating pressure 10 bar
– Bursting pressure 30 bar
– I/O 1”
